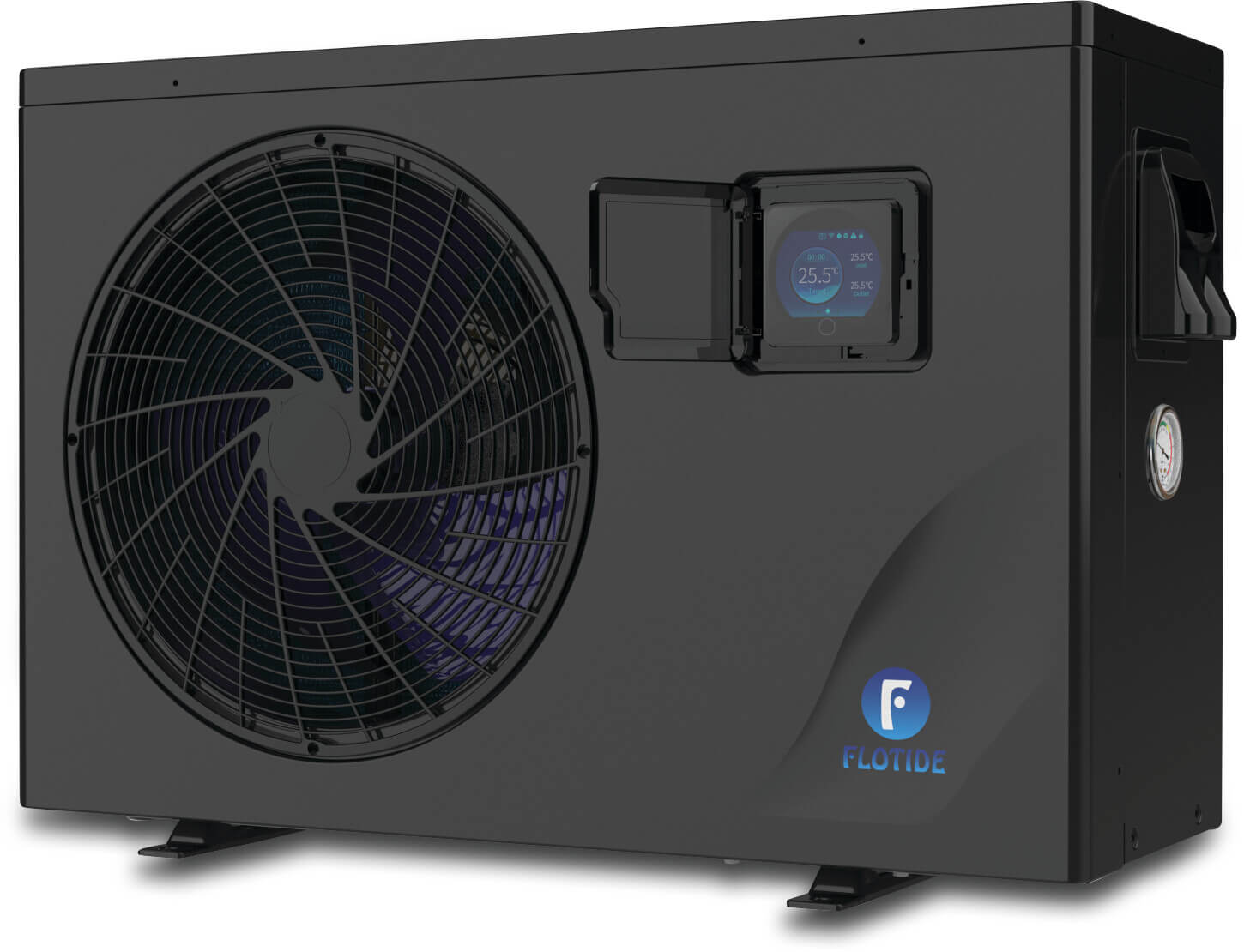

Flotide Inverter 25 Single-Phase Pool Heat Pump 24kW | Pools 60-115m³ | R32 Eco-Friendly

The Biggest Single-Phase Heat Pump in the Flotide Range

The Flotide Inverter 25 is the single-phase version of our Inverter 25T. It uses the same cabinet, suits the same 60-115m³ pools and delivers up to 24.0kW of heating capacity, but it runs on a normal 230V single-phase supply, so you don't need a 3-phase upgrade. Peak COP is 13.0, so for every £1 of electricity you put in you get up to £13 worth of heat back into the pool. A good fit for large domestic pools, holiday lets and light commercial sites.

🏷️ Energy Rating: A | 📡 Wi-Fi Module Included | 🔌 Single-Phase 230V Supply | FREE DELIVERY across the UK on all orders.

⚡ Important: Dedicated Hardwired Supply Required

Single-phase doesn't mean small. The Inverter 25 has a rated current of 22.5A and a minimum fuse rating of 35A (Flotide datasheet), so it must be hardwired on its own dedicated circuit by a qualified electrician. Flotide's manual calls for a 30mA RCD that trips in under 0.1 seconds, and your electrician should size the cable and breaker from the unit's nameplate using the cable table in the manual. It's worth having them check your incoming supply can take the extra load alongside the rest of the property. Got 3-phase on site? See the Flotide Inverter 25T 3-Phase instead.

🏊 Perfect For

• Pool Size: 60-115 cubic metres (large residential and light commercial pools)
• Water Volume: 60,000 - 115,000 litres
• Applications: Large domestic pools, holiday lets, small hotels and wellness centres, chlorine or saltwater systems
• Note: Maximum pool volume depends on environmental conditions and desired temperature

✨ Key Features & Benefits

Smart Inverter Modulation

The full inverter compressor automatically adjusts heating capacity to suit the weather and the pool's demand. It modulates all the way from 4.7kW up to 24.0kW, which is a much lower floor than the 25T (9.8kW), so once the pool is up to temperature it can tick over gently instead of cycling on and off.

Outstanding Energy Efficiency

With a COP (Coefficient of Performance) of up to 13.0 at A27°C/W27°C, the Inverter 25 delivers up to £13 worth of heat for every £1 of electricity consumed. In cooler UK weather (15°C air temperature) it still manages a COP of up to 7.2.

Gree Inverter Compressor

Built around a low-noise Gree rotary inverter compressor paired with a variable speed fan motor, the same compressor brand used across the single-phase Flotide Inverter range.

"All Seasons" Operation

Works in ambient temperatures down to -7°C, so you can extend the swimming season into autumn and start earlier in spring. Automatic defrost keeps the unit running efficiently in cold snaps.

Automatic Heating & Cooling

Not just a heater - the Inverter 25 can also cool the pool in summer if needed. Automatic mode maintains your target temperature without manual intervention.

Eco-Friendly R32 Refrigerant

Uses R32 refrigerant, with a Global Warming Potential (GWP) 3x lower than older R410A. Powerful heating performance with reduced environmental impact.

Titanium Heat Exchanger

The PVC-titanium heat exchanger gives excellent corrosion resistance for both chlorine and salt chlorinated pools.

Quiet Operation

Low-noise rotary compressor and variable speed fan keep noise to 45-56 dB(A) at 1m, dropping to 25-46 dB(A) at 10m.

Wi-Fi Control Included

Wi-Fi module supplied as standard. Glass touch display on the unit plus smartphone control, so you can check and adjust the pool temperature from anywhere.

SmartGrid Technology

Built-in SmartGrid input lets external signals influence electricity usage - useful if you have solar PV or want to schedule around an off-peak tariff.

Durable ABS Cabinet

Black ABS cabinet built for outdoor use, with a built-in pressure gauge for an at-a-glance system check. A winter cover is included.

📊 Full Technical Specifications

📋 Flotide Inverter range datasheet (PDF) | 📘 Installation and user manual (PDF)

💰 Estimated Running Costs

Worked out from the 0.7 - 4.96 kW power input on Flotide's datasheet, at an average UK electricity rate of £0.25/kWh:

• 8 hours at minimum output: about £1.40
• 8 hours flat out: about £9.92

It sits near the top figure mainly while heating the pool up from cold. Once you're at temperature the inverter modulates down, so day-to-day costs are usually well below it.

Note: Actual costs will vary based on pool size, target temperature, ambient conditions, energy tariff and operating hours. A pool cover can reduce running costs by up to 50%.

📦 What's in the Box

• 1 x Flotide Inver 25/32 Single-Phase Inverter Heat Pump (69 kg)
• 1 x Wi-Fi module
• 1 x Winter cover
• Installation and user manual (English)

🔧 Installation Notes

Professional installation required. This is a hardwired unit and must be installed by a qualified electrician, alongside a qualified pool technician for the pipework. Key requirements from Flotide's manual and datasheet:

• Dedicated 220-240V single-phase supply, 35A minimum fuse rating, with a 30mA RCD (trip time under 0.1 seconds)
• Outdoor installation with plenty of fresh air. Keep at least 2.5m clear in front of the fan outlet, 500mm behind the air inlet and 300-700mm at the sides (see the siting diagram in the manual). Don't box it in or tuck it behind shrubs
• Normally installed within 7.5m of the pool to keep pipe heat loss down
• Level, stable base sized for the 1160 x 490 mm footprint
• Connection to the pool filtration system via 50mm pipework with a bypass
• Recommended flow rate 14 m³/h - check your pool pump can support this

🛡️ Warranty Information

• 2-year warranty on the heat pump unit
• 5-year warranty on the compressor and titanium heat exchanger

Warranty is subject to correct installation by a qualified professional and proper maintenance according to manufacturer guidelines. Extended warranty options may be available - please contact us for details.

🚚 Delivery & Returns

FREE DELIVERY to mainland UK addresses. Most orders are dispatched within 5-7 working days for this unit. This item is eligible for our 14-day returns policy (conditions apply - unit must be unopened and unused).

🌟 Why Choose 123 Pools?

• ✅ FREE DELIVERY across the UK
• ✅ Expert technical support from qualified pool engineers
• ✅ Genuine manufacturer warranties
• ✅ Competitive pricing
• ✅ Volume / trade enquiries welcome

Big pool, no 3-phase? The Flotide Inverter 25 gives you 24kW of inverter heating on a standard single-phase supply. Order today, or call us to talk through your install.

Questions? Our expert team is here to help - call us or use the live chat.
