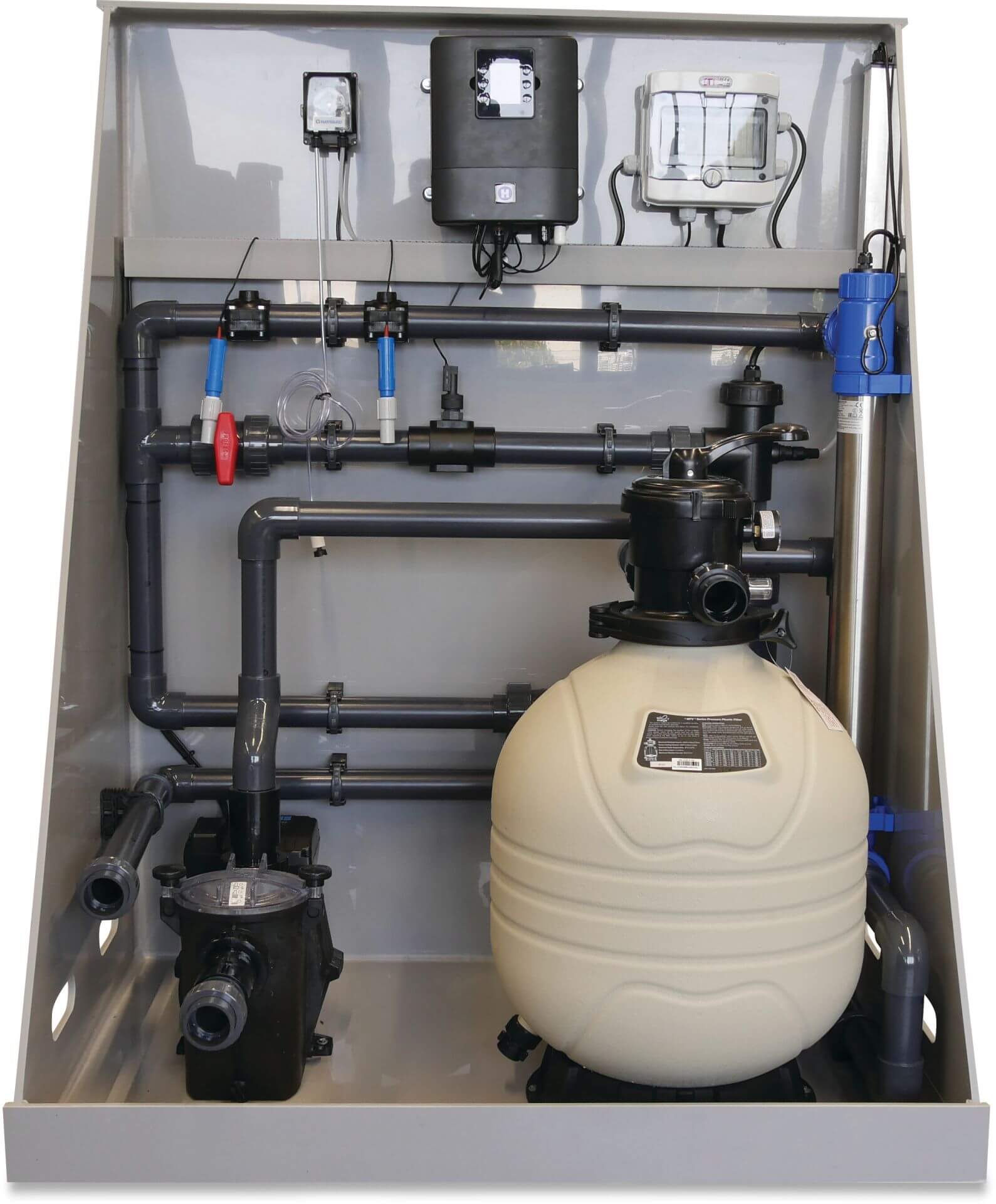

Flotide Technical Pallet Pro v3 - Complete Plug & Play Pool System

The Flotide Technical Pallet Pro v3 is a complete, all in one pool plant room on a single pre assembled pallet. Every part of the system, the pump, filter, salt chlorination, UV-C and automatic dosing, is already mounted and plumbed in for you, so a job that would normally take days of pipework can be up and running in a matter of hours. Just connect it to your pool, power and water, and you are ready to go.

Designed for pools up to 50m³, its compact footprint is built to slot neatly into almost any plant room or pool house.

Everything is done for you

This is genuinely plug and play. The whole system is factory assembled on a powder coated steel pallet, fully piped and wired, and pressure checked before it leaves. No working out which part connects to what, no hunting for fittings, it arrives as one finished unit ready to install.

What's on the pallet

• Hayward RS II VSTD 1.5HP variable speed pump – quiet, energy efficient circulation that you can run slower for everyday filtration and faster when you need it.
• Flotide sand filter with 6 way multiport valve – reliable, easy to maintain filtration for crystal clear water.
• Hayward AquaRite salt chlorinator – gentle, low maintenance salt water chlorination, sized for pools up to 60m³, so no more handling and storing chlorine.
• Blue Lagoon UV-C Tech 75W disinfection – ultraviolet treatment that cuts right down on chlorine demand and keeps the water fresh, clear and kind on eyes and skin.
• Automatic pH and ORP dosing – built in pH and ORP probes with a dosing pump constantly measure and balance your water chemistry for you.
• All valves, pipework and controls – ball valves, flow switch and PVC pipework, pre fitted and ready to connect.

Why choose the Pro v3

• Plug and play, pool ready in hours not days
• One complete system from a single supplier, everything works together
• Compact enough for almost any plant room
• Salt water sanitisation plus UV-C for softer, clearer water
• Fully automatic water chemistry control
• Suitable for pools up to 50m³

Specifications

• System type: all in one pre assembled filtration and treatment pallet
• Suitable for pools up to 50m³
• Pump: Hayward RS II VSTD 1.5HP variable speed
• Filtration: Flotide sand filter with 6 way multiport valve
• Sanitisation: Hayward AquaRite salt chlorinator (up to 60m³) plus Blue Lagoon UV-C Tech 75W
• Water management: automatic pH and ORP measurement and dosing
• Pallet footprint: approx 1200mm wide x 800mm deep x 1500mm high
• Manufacturer part: Flotide Pro v3 (7043374)

Downloads

• Flotide Pro v3 Technical Datasheet (PDF)
• Flotide Pro v3 Dimensions Drawing (PDF)
• Flotide Pro v3 Exploded View & Parts List (PDF)

Need a hand working out if this is the right setup for your pool? Just get in touch and we'll talk it through.
