Hayward TigerShark Spare Parts

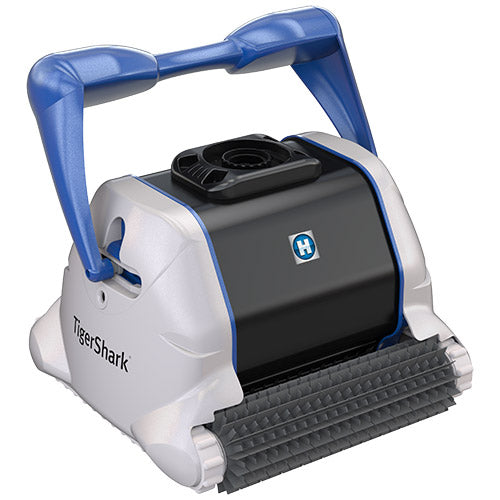

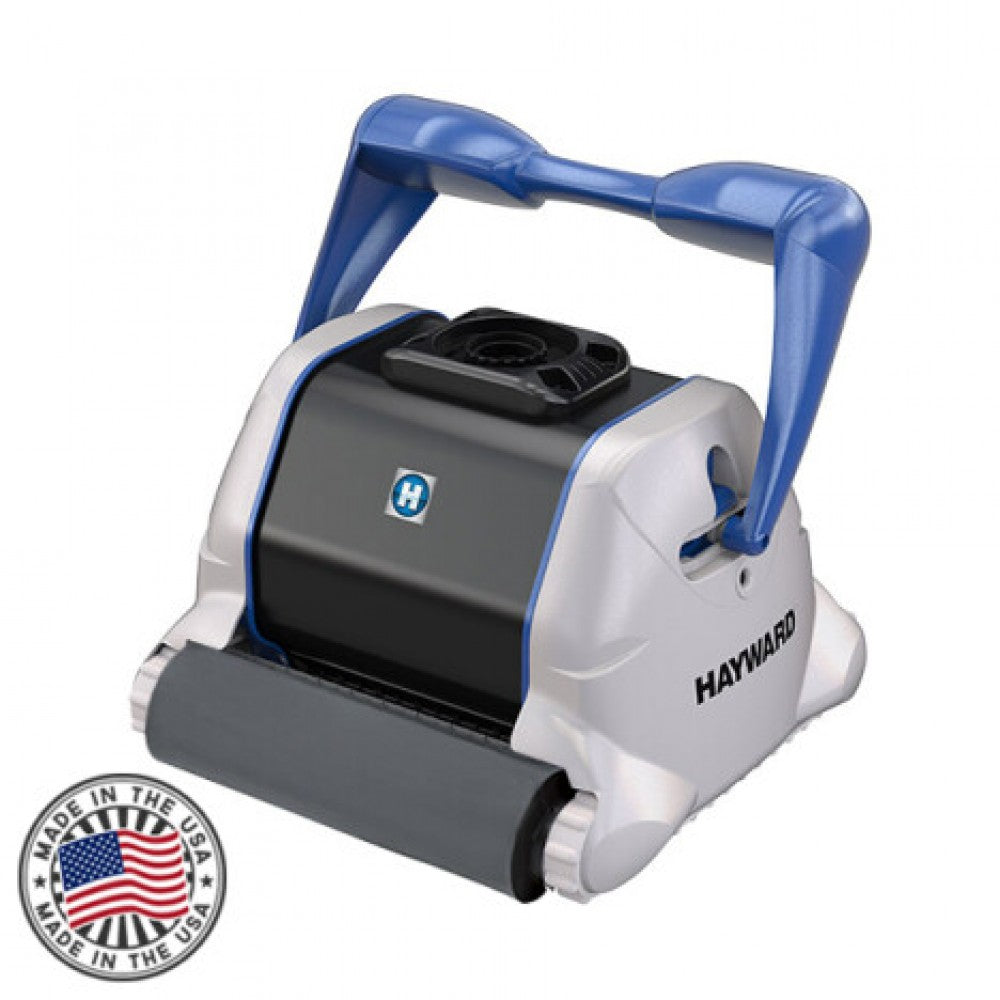

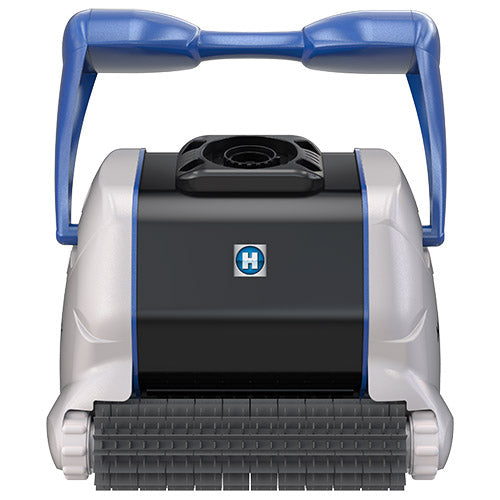

Spare parts for the Hayward TigerShark robotic pool cleaner, covering the standard TigerShark, the TigerShark Plus and the TigerShark QC (Hayward 7018786 / 7018787).
Find the part on the exploded view below, then choose its number from the Part menu. Rows marked Plus or QC are only for that version.
📞 Contact Us for Availability
Stock and prices on spare parts change, so please get in touch before ordering. Tell us your TigerShark model and the part number and we'll come back to you with a price and availability.
- Call 01803 900195
- WhatsApp +44 7775 120123
- Need more than one part? Send them all in one go on our TigerShark spare parts request form

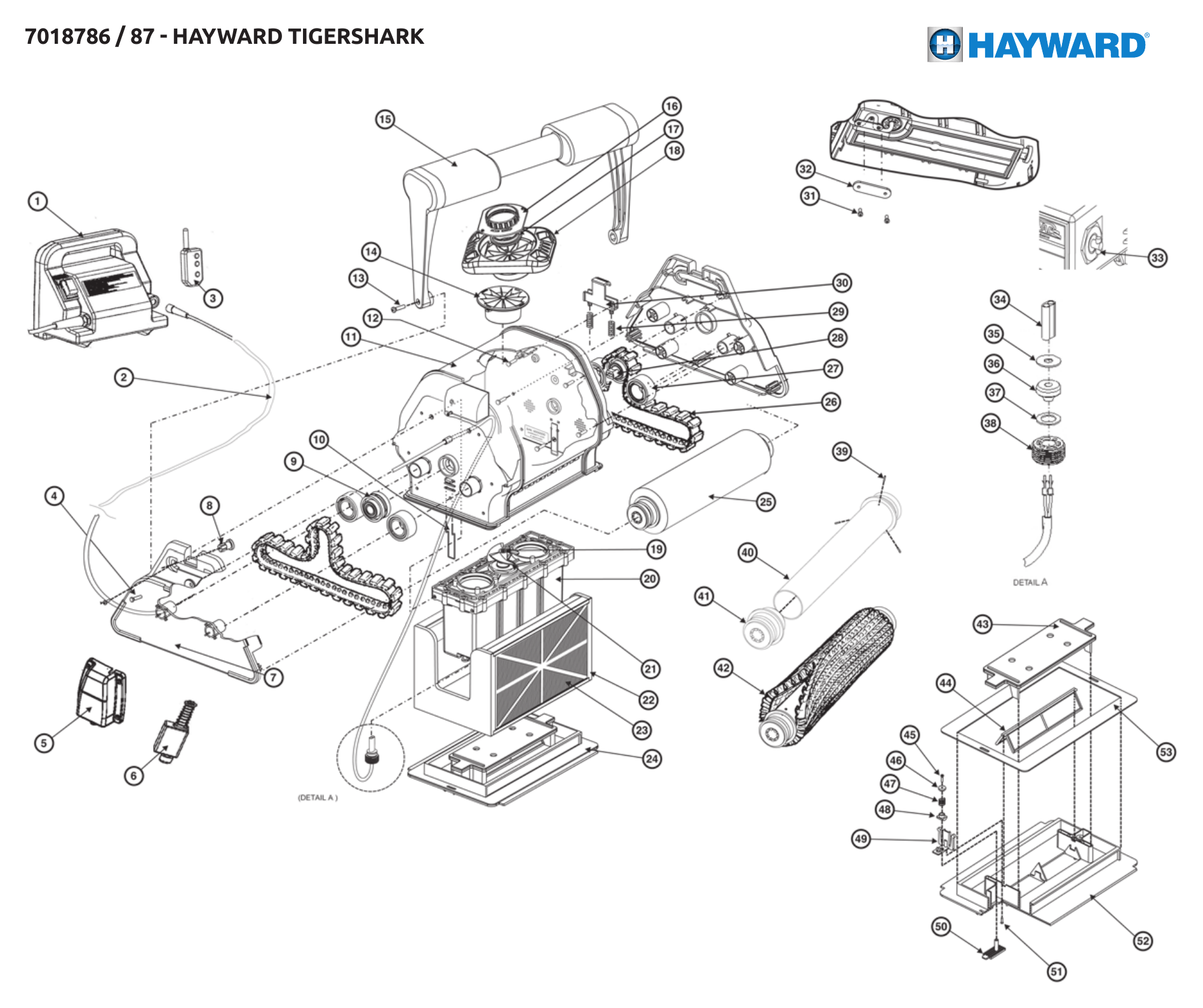

🔧 Exploded View
Download the exploded view and parts list (PDF)
📋 Parts List
| No. | Description | Qty | Part no. |
|---|---|---|---|
| 1 | Power supply TS/AV | 1 | 7006463 |
| 1 Plus | Power supply | 1 | |
| 1 QC | Power supply | 1 | 7006498 |
| 2 | Power cord assembly 50μf | 1 | 7006500 |
| 2 Plus | Power cord 16,76 m remote T/S | 1 | |
| 3 | Remote-hand held | 1 | |
| 4 | Spring-bottom lid | 1 | |
| 6 Plus | Solenoid, T/S remote | 1 | |
| 7 | Cover side | 1 | |
| 7 Plus/QC | Cover side | 1 | |
| 8 | Handle-arm slide | 1 | |
| 9 | Roller-bearing guide | 1 | |
| 10 | Clip-lid, set of 2 | 2 | |
| 11 | Assy - outer casing tigershark | 1 | |
| 12 | Screw-M4x12mm pan, set of 5 | 5 | |
| 13 | Screw-M4x12mm pan, set of 5 | 5 | |
| 14 | Venturi | 1 | |
| 15 | Handle, dk blue 2728c | 1 | 7037561 |
| 15 Plus/QC | Handle | 1 | |
| 16 | Kit-restrictor plate new model | 1 | |
| 17 | Restrictor plate insert | 1 | |
| 18 | Venturi, new style | 1 | |
| 19 | Screw-M4x12mm flat | 5 | |
| 20 | Motor-unit, 4 HR DC Input | 1 | 7006461 |
| 20 QC | Motor-unit, 4 HR DC Quick Clean | 1 | 7006462 |
| 20 Plus | Motor-unit, Remote 4 HR Plus | 1 | |
| 21 | Impeller | 1 | |
| 22 | Frame-filter | 1 | |
| 23 | Set-filter cartridge refill | 1 | |
| 22+23 | Filter cartridge assembly | 1 | 7006478 |
| 24 | Bottom lid | 1 | |
| 25 | Tube wheel | 1 | |
| 26 | Drive track-soft thread | 1 | 7006460 |
| 27 | Pulley-bearing idler | 1 | |
| 28 | Drive bearing pulley | 1 | |
| 29 | Spring-handle latch | 1 | |
| 30 | Latch-handle | 1 | |
| 31 | Screw-M2.9x8mm pan | 5 | |
| 32 | Plate-cover, strain relief | 1 | |
| 33 | Drive pin assembly | 1 | 7006485 |
| 34 | Housing connector | 1 | 7006486 |
| 34 Plus | Housing connector | 1 | |
| 35 | Washer connector small hole | 1 | 7006487 |
| 36 | Compression seal | 1 | 7006488 |
| 37 | Washer connector large hole | 1 | 7006489 |
| 38 | Plug seal | 1 | 7006490 |
| 39 | Screw-self tap | 1 | |
| 40 | Tube-wheel | 1 | |
| 41 | Bearing-wheel tube | 1 | |
| 42a | Brush T/S, clear | 1 | 7006493 |
| 42b | Tube wheel with foam roller SV | 7006533 | |
| 43 | Cover-inlet | 1 | |
| 44 | Flap-inlet | 1 | |
| 45 | Screw-M2.9x12mm pan | 5 | |
| 46 | Spring-retainer | 1 | |
| 47 | Spring-bottom lid | 1 | |
| 48 | Clip-follower | 1 | |
| 49 | Clip-support | 1 | |
| 50 | Plate-locking | 1 | |
| 51 | Screw-M2.9x13mm flat | 5 | |
| 52 | Lid-bottom | 1 | |
| 53 | Gasket-filter, bottom lid | 1 |
Part numbers are shown where the parts list gives one. For anything without a number, send us the position number and your model and we'll check it for you.
