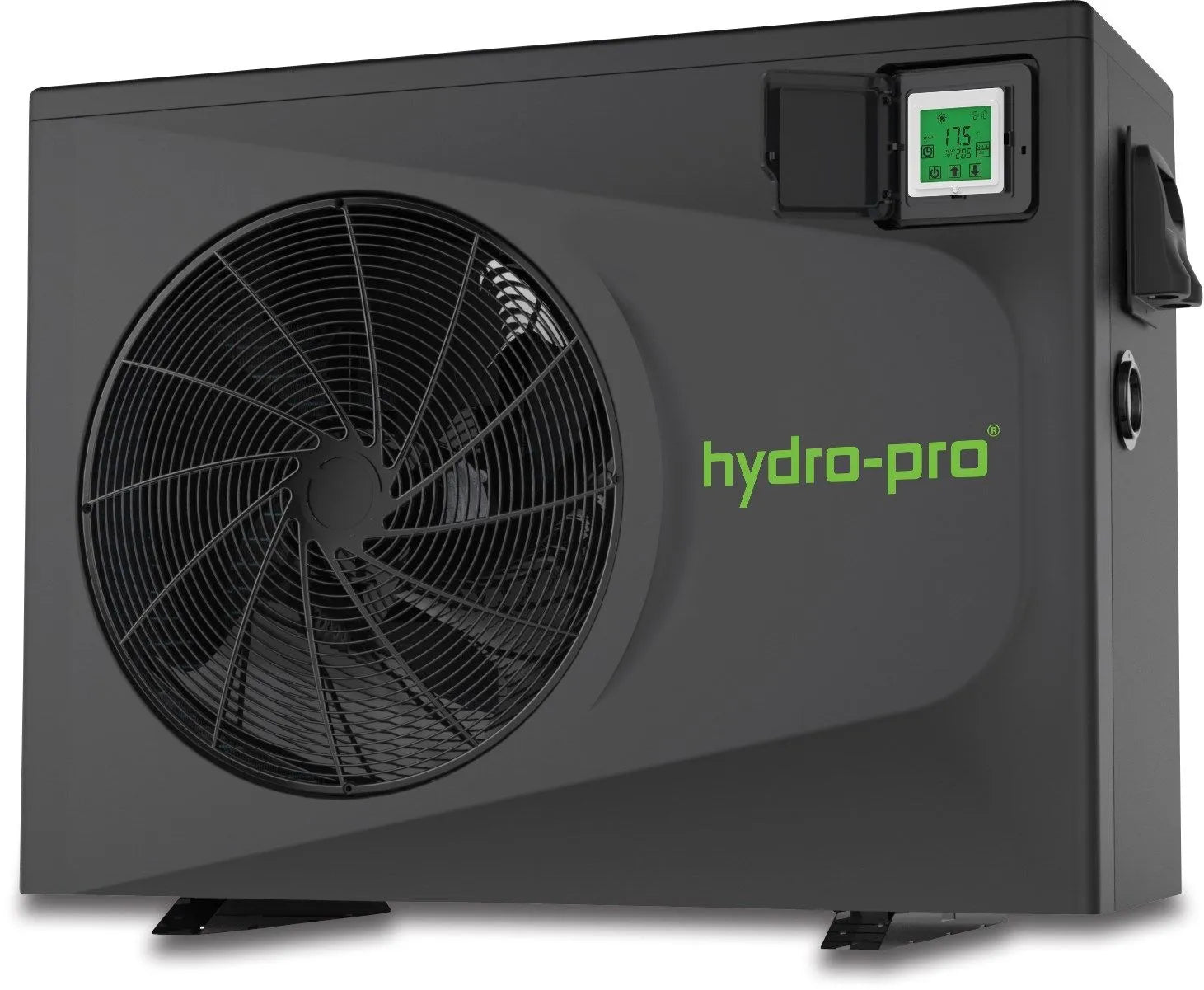

Hydro-Pro ABS Swimming Pool Heat Pump (P26T/32) 25.8kW
About this product
This Hydro-Pro Swimming Pool Heat Pump is an efficient, environmentally friendly, economically and sensible way to heat your pool. The Hydro-Pro range in particular is perfect for above ground pools in spring/summer seasons.
Using the latest R32 Gas; the Hydro-Pro Heat pump works by collecting the energy from the outside air and transferring it into the pool water using the same technology of that used in air-conditioning units and fridges.
All heat pumps in the Hydro-Pro P range come in black ABS casing and the titanium heat exchanger ensures protection from chlorine, bromine, salt and all natural outdoor elements. The titanium heat exchanger is also oversized to improve efficiency, that in turn allows the heat pump to be more cost effective.
Installation of the heat pump is easy; one of the simple but handy design additions is the integrated flow switch. The switch will sense the water flow and automatically start the heater when the pool pump starts and equally stop it when the pool pump shuts off. The larger sizes, 21T & 26T, come in 3-Phase. All heat pumps in this range come with an electronic display and control with easy operation.
The Hydro-Pro heat pumps use a highly efficient, low sounding compressor and have a low noise fan to ensure a quiet running.
Hydro-Pro Heat Pumps can save you up to 80% in operating costs compared to other forms of pool heating.
Specifications
- High efficiency performance, up to 6.4kW of heat for every kW used
- Extended season model works down to -7°C
- Black ABS corrosion resistant cabinet
- Heating (from 15°C) and cooling (down to 9°C)
- Easy digital temperature control with LCD display
- Quiet running with low sound rotary compressor, low noise fan
- R32 gas for environmentally friendly operation
- Water connections 50mm/1½ inch
- Automatic defrost cycle
- Spiral Titanium heat exchanger resistant to salt and chlorine
- Flow switch prevents damage to the unit in event of no or low flow
- Winter cover included as standard
- Two year parts and labour warranty, seven years on compressor and heat exchange (parts only outside of first two years)
Guidance Only – What Hydro-Pro Heat Pump is best?
|
Hydro Pro |
P6 |
P8 |
P12 |
P14 |
P20 |
P23/T |
P26T |
|
Power Input |
0.97kw |
1.32kw |
1.95kw |
2.35kw |
2.87kw |
3.2kw |
3.97kw |
|
Heating Capacity (A27/W27) |
5.87kw |
8.31kw |
11.5kw |
13.5kw |
19.5kw |
23.1kw |
25.8kw |
|
Heating Capacity (A15/W26) |
4.12kw |
5.71kw |
6.5kw |
9.8kw |
13.8kw |
16.2kw |
19.1kw |
|
Maximum Pool Volume With Good Insulation |
20m3 / 20,000 litres |
30m3 / 30,000 litres |
40m3 / 40,000 litres |
50m3 / 50,000 litres |
70m3 70,000 litres |
80m3 80,000 litres |
100m3 100K litres |
|
Type C or D Breaker |
15amp |
15amp |
15am |
20amp |
35amp |
35 & 20amp |
20amp |
|
Coefficient (C.O.P.) at Air 27°C & Water 27°C |
5.87 |
6.34 |
5.90 |
5.74 |
6.3 |
6.42 |
6.29 |
|
Coefficient (C.O.P.) at Air 15°C & Water 25°C |
4.25 |
4.33 |
4.59 |
4.52 |
4.81 |
5.06 |
5.09 |
|
Compressor |
rotary |
rotary |
rotary |
rotary |
rotary |
rotary |
rotary |
|
Refrigerant Gas |
R32 |
R32 |
R32 |
R32 |
R32 |
R32 |
R32 |
|
Fans |
1 |
1 |
1 |
1 |
1 |
2 |
1 |
|
Fan Power Input |
90 Watts |
90 Watts |
90 Watts |
120 Watts |
150 Watts |
2 x 120 Watts |
2 x 180 Watts |
|
Fan Dir. |
Horiz. |
Horiz. |
Horiz. |
Horiz. |
Horiz. |
Horiz. |
Horiz. |
|
Noise Level (10 metres) |
39 db(A) |
40 db(A) |
40 db(A) |
43 db(A) |
44 db(A) |
46 db(A) |
47 db(A) |
|
Water Connection |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
|
Minimum Water Flow |
2.3 m3/h |
3.0 m3/h |
4.5 m3/h |
5.3 m3/h |
6.8 m3/h |
7.5 m3/h |
9.0 m3/h |
|
Unit Dimensions CM |
L-80 W-32 H-57.5 |
L-100 W-39 H-60 |
L-100 W-39 H-60 |
L-116 W-46 H-87 |
L-116 W-46 H-87 |
L-105 W-43 H-125 |
L-105 W-43 H-125 |
